在這個蓬勃發展的年代，萬物順勢而為，棄舊迎新，蘊有盛世之所趨，如見龍于田，不日隨扶搖而上，潤澤天下；顯示行業也是一樣，科學技術的不斷創新發展，畫面高清細膩的液晶拼接屏亦慢慢地進入我們的生活。



  日前，浙江名瑞機械有限公司向華邦瀛科技引入一套55寸液晶拼接屏，置于公司會議展示中心，增強公司軟實力，提升企業形象，促進工作效率。

Zhejiang Mingrui Machinery Co., Ltd. is a national high-tech enterprise integrating R & D, manufacturing, marketing and service.

  Next, let's understand the specific situation and installation details of this LCD splicing screen project.



   1、 The contractor of this project is Shenzhen huabangying Technology Co., Ltd., a famous Chinese brand, CCTV discovery column brand and splicing screen direct selling manufacturer.

   2、 The splicing unit hby-pj550p adopts industrial grade Samsung a + original panel and straight down LED backlight. The picture is clear, natural and fluent. It has 178 ° ultra wide view and high resolution 1920 * 1080, plus 4500:1 contrast, which makes the color clear and delicate.



  3、 Splicing seam: 1.7mm; splicing specification: 3 * 4 / 55 inch (Note: 55 inch width and height are 121.3cm and 68.4mm respectively); response time: less than 6ms; operation life: more than 70000h; installation method: floor support installation, easy maintenance。

   Installation site analysis:





1. Make sure that the site environment is clean and tidy, and the ground is level, to prevent static electricity, so as not to affect the subsequent interference of the splicing screen during operation.

   2. Integrate on-site wiring, separate weak cables from strong cables with trunking to avoid signal interference.

   3. Test the stability of the on-site power supply system to ensure "three-phase balance"

   4. With the splicing processor, it can realize the functions of single and multi-screen display, splitting, etc., to meet the needs of the display system, and support multiple signal inputs such as HDMI, DVI, and VGA.

   5. Keep the splicing large screen away from direct sunlight to avoid affecting the display effect, and a maintenance channel is reserved behind the bracket.



  The above is some of the specific situation of this project, if you have doubts or mistakes, please feel free to ask and supplement.

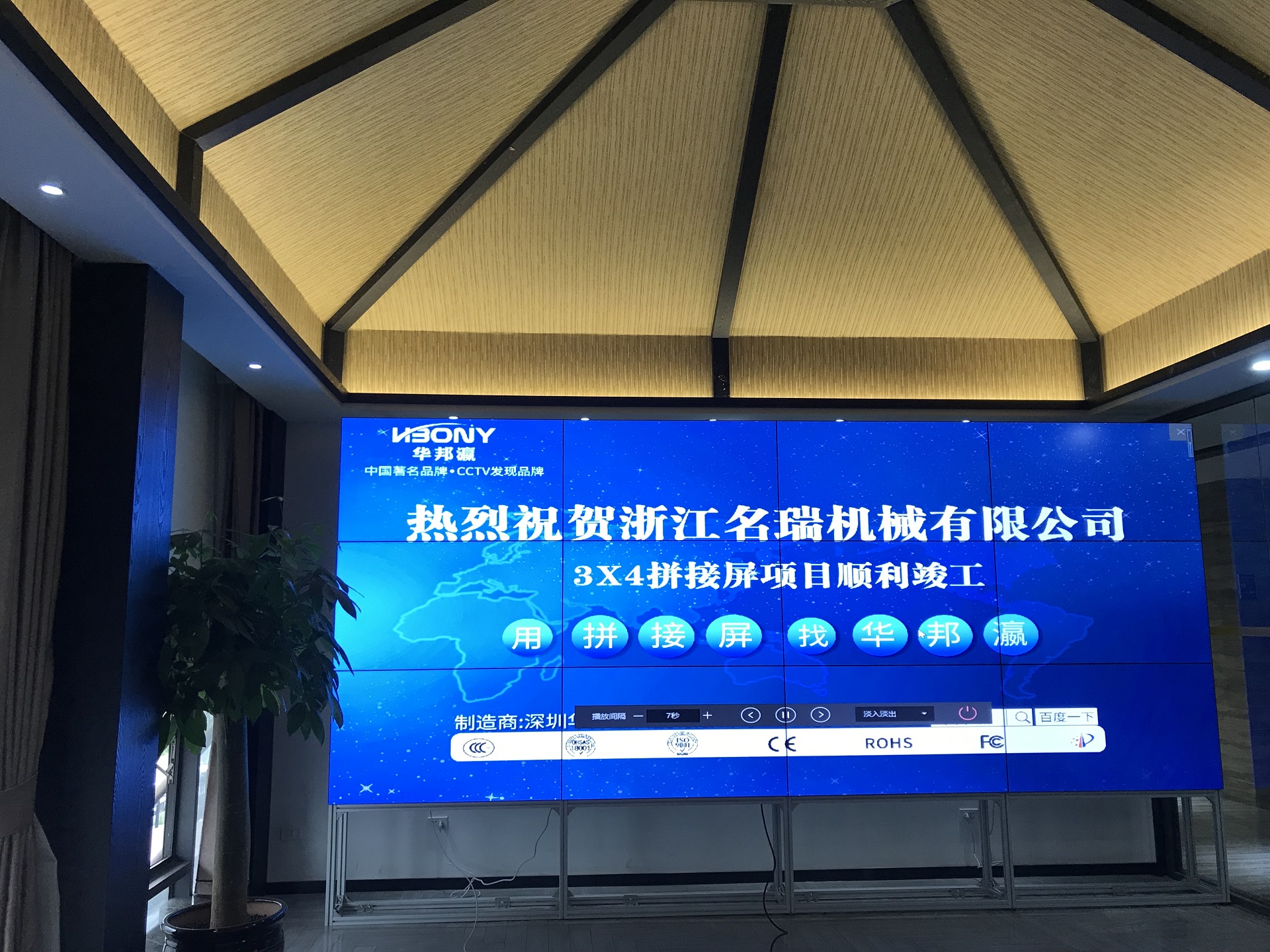

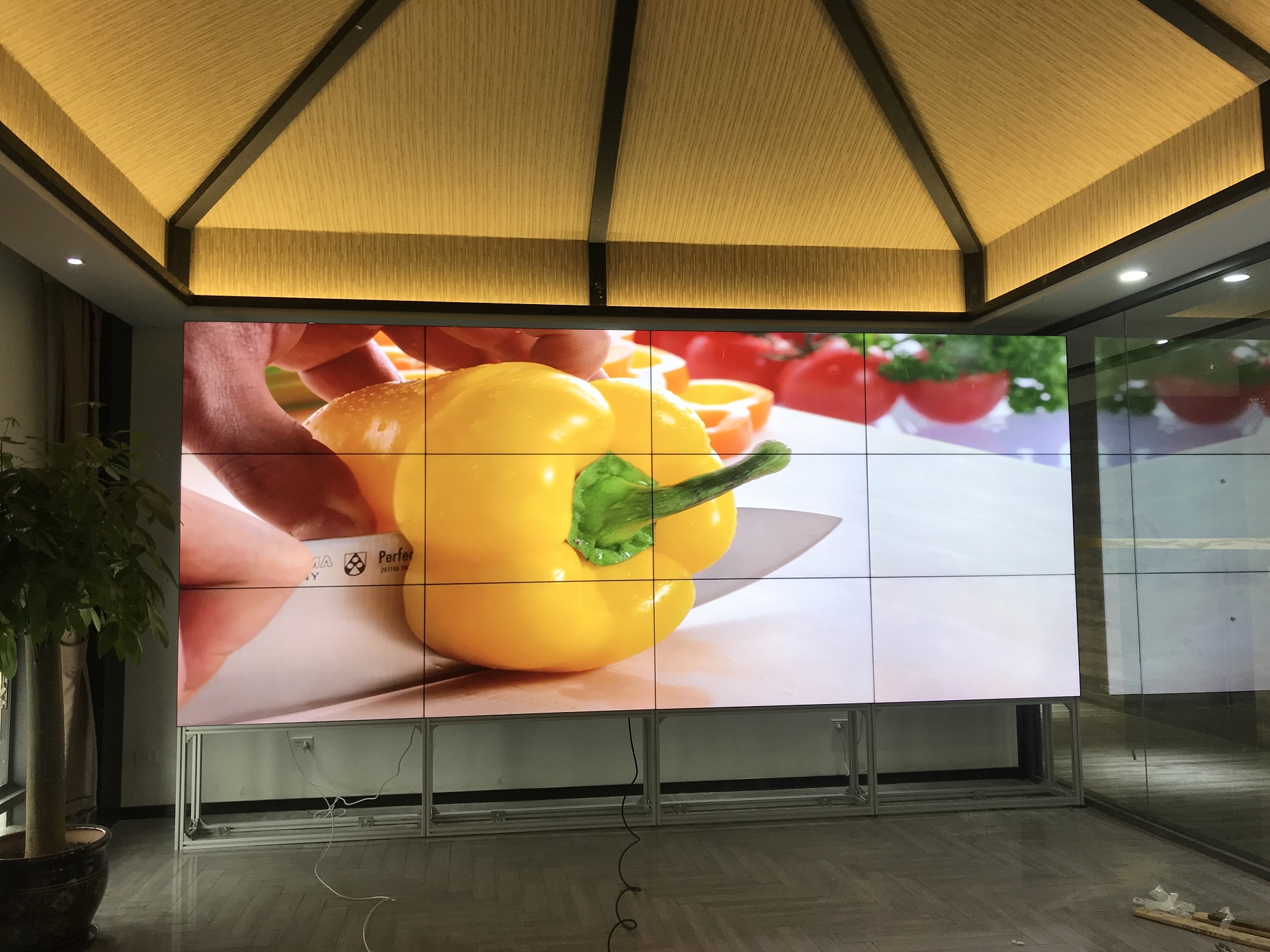

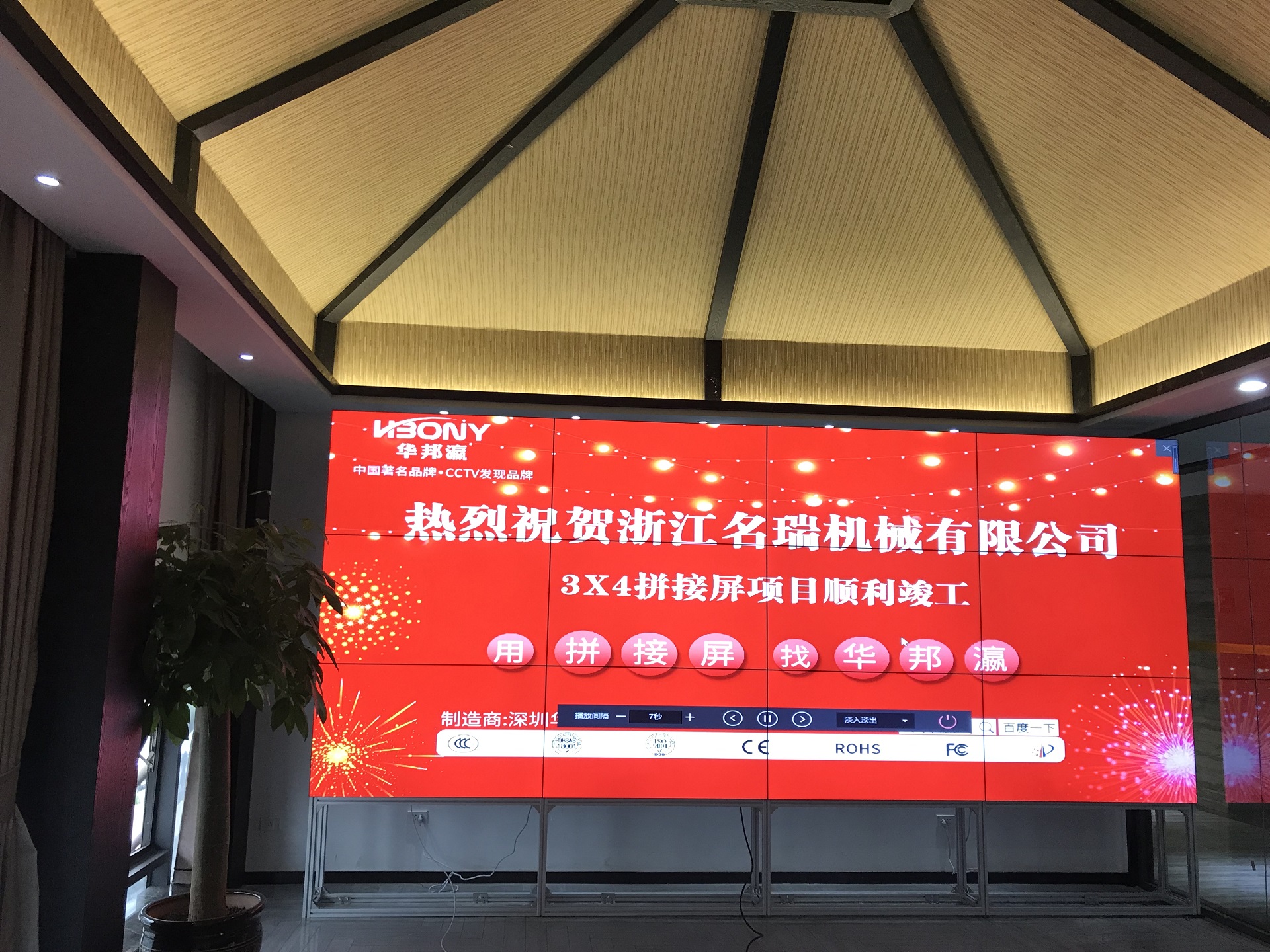

  Finally, the project was successfully put into use after a series of verification and testing.


 The continuous innovation of technology and the reliability of product quality are the lifeblood of an enterprise. Zhejiang Mingrui Machinery Co., Ltd. and huabangying Technology Co., Ltd. are also the same. We always take the needs of customers as the basis, constantly improve and develop ourselves, output the best display products to users, provide the best service, and work together to achieve mutual benefit.
