A few days ago, Aolin Tsinghua marketing center purchased a set of large splicing screens from huabangying, a LCD splicing screen manufacturer, as the display equipment of the marketing center. Located in Boluo County, Huizhou Aolin Tsinghua University is located in the administrative and cultural center of new town of Boluo County, with a total building area of 318000 square meters. It plans to build 12 26-32 storey pure high-rise residential buildings with artdeco architectural style and incomparable noble temperament.

In order to better show the information of the real estate to customers, such as the traffic conditions, living facilities and educational resources nearby, the broadcasting of corporate culture and enterprise paper can provide guarantee; the customers who come to the marketing center can fully understand the current building information; the hot LCD splicing screen in the market is undoubtedly the best choice for the terminal display equipment of the marketing center.

Project specification:

Splicing unit: HBY-PJ550P

Splicing seam: 3.5mm

Splicing specification: 4*4/55 inch

Contrast ratio: 4500:1

Resolution: 1920*1080

Response time: less than 6ms

Operating life: more than 70000h

Installation method: embedded, hydraulic front maintenance bracket

Brightness: 500cd/m2

Construction unit: LCD splicing screen manufacturer Winbond Ying Technology

Panel type: Samsung industrial grade S-PVA panel

The LCD splicing screen has a direct-lit backlight that leads the industry, and the displayed images are clear, clear, bright, vivid and delicate, and flicker, making the full-screen display images show very high-end beauty and texture; 1920*1080 ultra-high resolution and 4500:1 clear contrast ratio, high-definition without distortion; at the same time, there is an ultra-wide viewing angle of 178°, the display screen is at a glance; not only that, the ultra-long life of more than 70,000 hours and the LCD splicing screen that supports 7*24 operation without damage, the maintenance cost is extremely Low and cost-effective; it is the best choice for display terminal fields such as monitoring security, conference display, shopping mall exhibition, cinema, large-scale game competition display equipment, wall advertising carousel, etc.

1. The height of the splicing wall H=3.53m, the length L=5.68m, according to the requirements of the marketing center, the splicing screen is centered, the upper and lower sides are about 40cm apart, and the left and right sides are 35cm. The two parties negotiated and formulated a 4*4 55-inch splicing plan

2. Use splicer processor access to meet display needs, multi-screen, single-screen, carousel display, etc., and support multiple video signal access.

3. Investigate the wiring of the field, separate the strong and weak wires with a wire slot to prevent signal interference; there is no strong light near the screen, so as not to affect the display of the splicing screen and cause reflections.

4. The embedded hydraulic front maintenance bracket is used for installation, which saves space and is high-end fashion; if there is a problem with a single screen in the future, it can be directly disassembled and installed without affecting other screens.

5. The power supply system at the installation site is operating normally, close to three-phase balance, and the load power of each wiring is basically the same.

6. The construction site environment is clean and dust-free; the floor where the projection unit is installed is flat and firm;

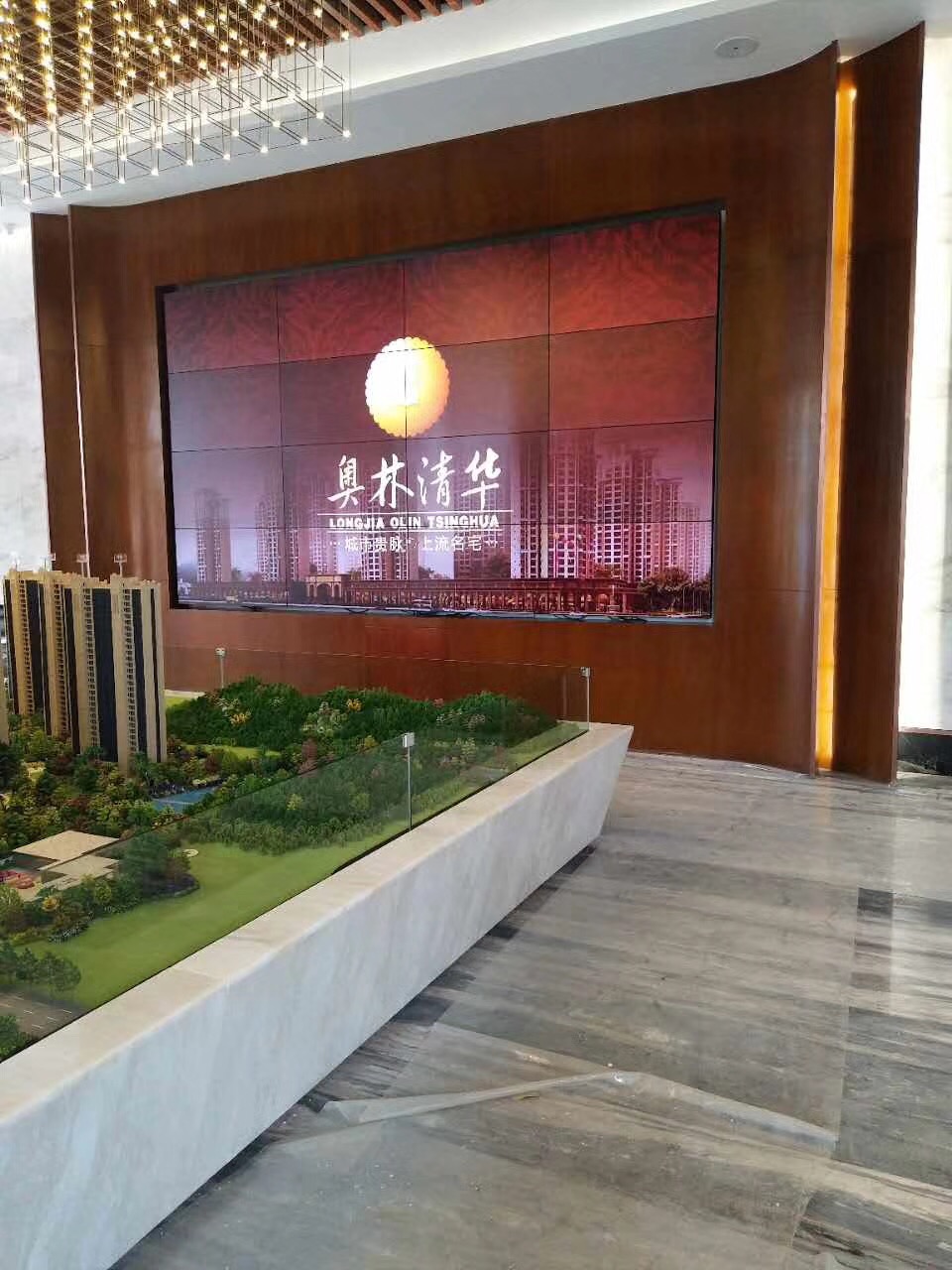

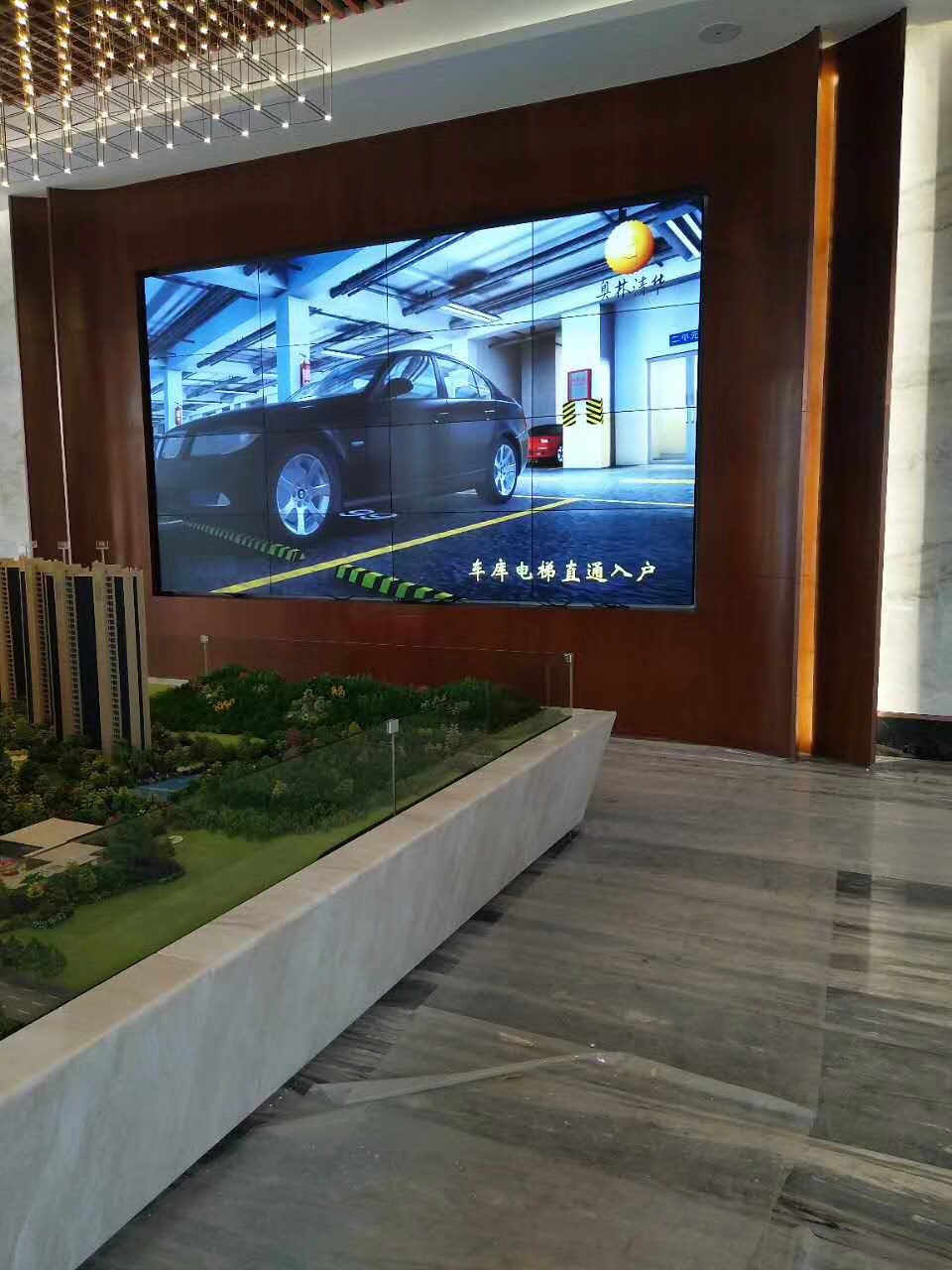

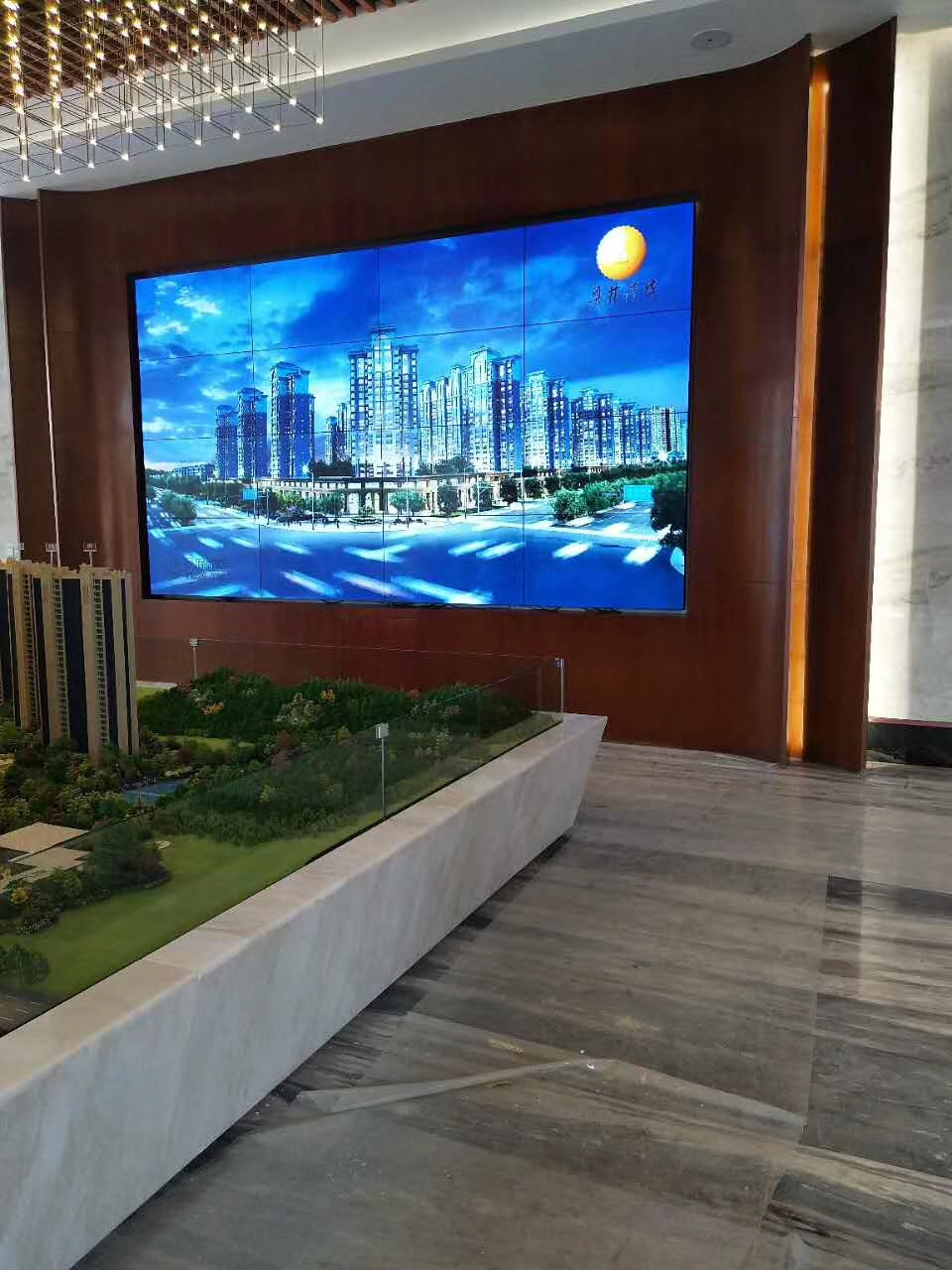

Now the project has been installed and put into use, which greatly improves the beauty of the marketing center, highlights a fashionable and not too perverse sense of art level, so that every customer who comes to the marketing center can experience the visual feast of LCD splicing large screen, and timely understand the current situation of the real estate, so as to facilitate their choice.

Committed to creating the most appropriate customized display scheme for customers is the goal that huabangying, a LCD splicing screen manufacturer, has been pursuing for many years. To achieve mutually beneficial coexistence and common development with customers has always been the firm concept of the company. In the future, huabangying will continue to improve itself and spare no effort to provide customers with the best quality products and services.
