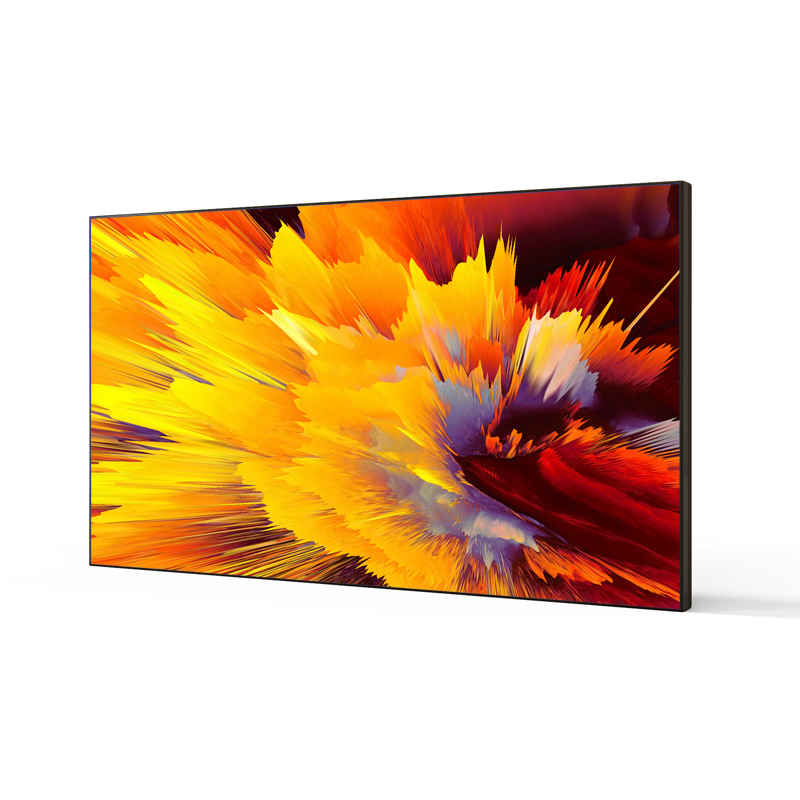

46 inch Samsung 1.7mm LCD splicing screen

Product details
Application environment
Installation mode
Requirement submission
Product recommendation

46 inch Samsung 1.7mm LCD splicing screen Display parameters

Product number	HBY-PJ460P-2	screen size	1018.1mm*572.7mm	Bilateral patchwork	1.7mm
brightness	500 cd/m²	physical dimension	1020.02574.61125.7mm	Power consumption	220W/h
Contrast	4000:1	Boot response time	6ms	Resolution	1920*1080
Viewing angle	178°	weight	26KG	Service life	6Whour


Ultra-narrow frame design, perfect visual feast

The 1.7mm splicing narrow frame design makes the display between the screens almost seamless. The width of the frame on the left/upper side of the spliced display is 1.15mm.

The width of the right/bottom border is 0.55mm, and the border interval is only 1.7mm when multi-screen splicing

LCD splicing unit, multi-view angle analysis


Intelligent split screen, any combination of single screen and multiple screens

Diversified image splicing display, can set the size and position of the display signal window, and easily realize the functions of combined display, stretching, image roaming, etc. 3(1).jpg

Application Environment

Can be used in various environments

LCD splicing screen parameter table

LCD screen	size	46 inches
	Display area	1018.1mm*572.7mm
	Equipment size	1020.02mm574.61mm125.7mm
	Resolution	1920*1080
	Pixel pitch	0.53025mm*0.53025mm
	brightness	500cd/m2
	Contrast	4000:1
	color	16.7M
	Color gamut	0.72
	Viewing angle	178°
	Response time	6ms
	Physical patchwork	1.7MM
image	proportion	16:9
	Wave filter	3D comb filtering, digital noise reduction
	Video format	PAL/NTSC
Input port	HDMI	1 channel HDMI 1.4, 1920*1080@60HZ backward compatible
	DVI	1 DVI-I, 1920*1080@60HZ backward compatible
	VGA	1 channel VGA(DB-15), 1920*1080@60HZ backward compatible
	AV	2 channels AV, 1920*1080@60HZ backward compatible
	USB	1 channel, support video, picture, audio playback
	RS232	1 RS232
Loop out port	AV	2 channels AV, 1920*1080@60HZ backward compatible
Loop out port	RS232	2 RS232
Electrical performance	enter	AC100-240VWide voltage input
	Power consumption	180W
	Standby power consumption	0.5W
surroundings	storage temperature	-20~ 65°C
surroundings	Operating temperature	0~ 50°C
surroundings	net weight	26KG
